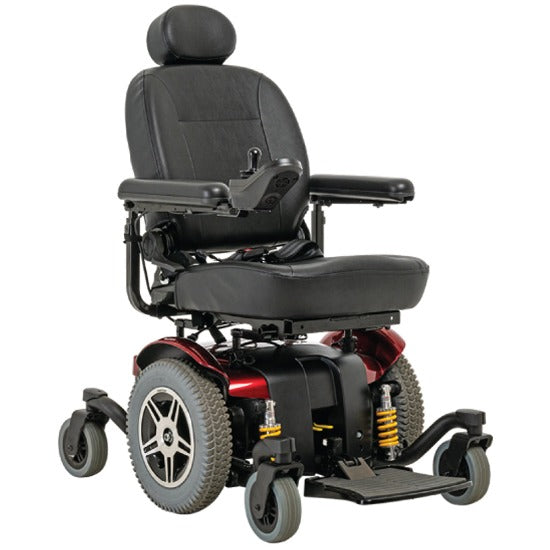

Pride Mobility Jazzy Power Wheel Chair

Pride Mobility Jazzy Power Wheel Chair

Power and precision combine into one exceptional power chair! The Jazzy 614 HD features outstanding suspension and a tight turning radius. Large drive wheels and six-inch casters tackle uneven terrain, no matter where your day takes you.

Features:

40A Dynamic LiNX controller
Deluxe contour, limited recline high back seat
6" casters on front & rear for maximum stability
Universal, fixed, in-line joystick mount
Dual enhanced in-line motors for greater efficiency, torque, range and performance
6” casters on front and rear for maximum stability

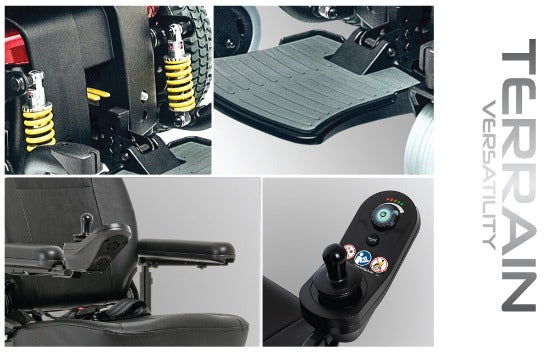

Active-Trac ATX Suspension for enhanced performance over more varied terrain
Easy rear access to batteries
Seating up to 24” W x 24” D
Toolless shroud removal
Easy serviceability
Flip-up, height-adjustable foot platform
HCPCS Code: Group 2: Heavy Duty (K0824/K0825)

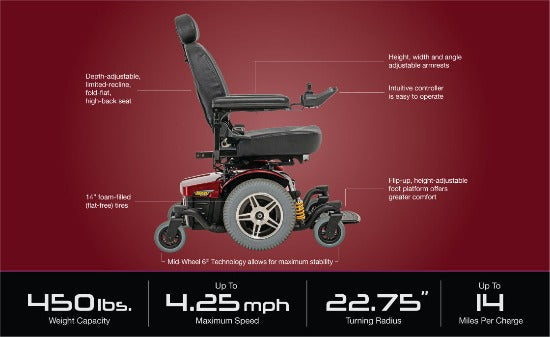

Specifications:

Model: Jazzy 614 HD
Weight Capacity: 450 lbs.
Turning Radius: 22.75"
Width: 25.125"
Length: 35.5"/40" with footplate
Maximum Speed: Up to 4.25 mph
Ground Clearance: 2.25"
Front Wheels: 6" solid casters
Drive Wheels: 14" foam filled
Rear Wheels: 6" solid casters
Drivetrain: Two motor, in-line, Mid-Wheel 6
Braking System: Regenerative and electro-mechanical
Suspension Type: Active-Trac (ATX) with Mid-wheel 6 Technology
High-Back Seat (max. size): 24"W x 24"D
High-Back Seat-to-Floor Range: 20.5” – 23.5”
Synergy Seating: 24”W – 24”D
Synergy Seat-to-Floor Range: 17.75” – 19.75”
Standard Electronics: 40A Dynamic LiNX
Batteries: 38 lbs. each
Battery Size (2 required): 12 volt, NF-22
Standard Battery Charger: 5A, off-board
Per-Charge Range: Up to 14 miles
Battery Weight: 37 lbs.
Weight of Heaviest Piece: 122 lbs.
Standard Seat Weight: 18" wide - 51.8" lbs., 20" wide - 54 lbs., 22" wide - 57.6 lbs.
Standard Seat Size: 20" x 18"-20", 22" x 20"-22"
Warranty: 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
