Pride Mobility Jazzy Power Wheel Chair

Pride Mobility Power Wheel Chair

An experience so superior, it can only be elite. The Jazzy Elite ES features large, front-drive wheels to absorb the bumps and uneven surfaces of everyday life. The comfortable, high-back seat gives you the support you need all day, every day.

Features:

In-line, front-wheel drive technology provides tight turns around corners
Comfortable, depth-adjustable, limited recline high-back seat with headrest
40-apm, PG GC 3 controller
Optimal indoor maneuverability in small spaces
Large front wheels for extra absorption over obstacles

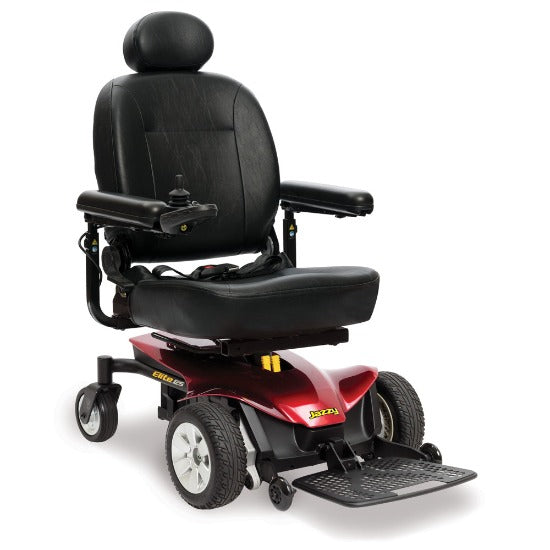

Available in Candy Apple Red and Viper Blue
HCPCS Code: Group 2: Standard (K0822/K0823)

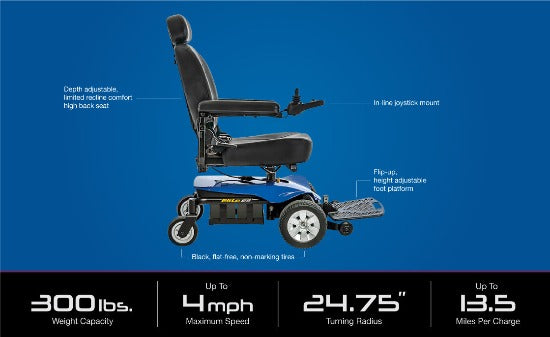

Specifications:

Model: Jazzy Elite ES
Weight Capacity: 300 lbs.
Turning Radius: 24.75"
Width: 22.75"
Length: 34.75"/41" (with footplate)
Maximum Speed: Up to 4.0 mph
Ground Clearance: 1.85" at motors
Front Wheels: 3" solid anti-tips
Drive Wheels: 9" solid
Rear Wheels: 6" solid casters
Drivetrain: Two motor, in-line, front-wheel drive
Braking System: Regenerative and electro-mechanical
Suspension Type: Limited
High-Back Seat (max. size): 20"W x 20"D
High-Back Seat-to-Floor Range: 21.5” – 23.5”
Standard Electronics: 40A, PG GC3
Battery Size: (2 required) 12 volt, U-1
Standard Battery Charger: 3.5A, off-board
Per-Charge Range: Up to 15 miles
Battery Weight: 25 lbs. each
Weight of Heaviest Piece: 69 lbs.
Standard Seat Weight: 50.2 lbs. (comfort, high-back)
Standard Seat Size: 16" x 16"-18", 18" x 18"-20", 20" x 18"-20"
Warranty: 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
