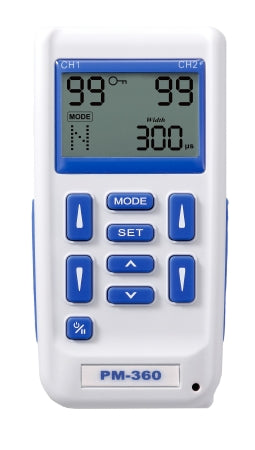

ProMed Specialties Tens Unit Electrotherapy Device 2-Channel - PM-360
Out of stock
Sold out
$58.99
SKU PM-360
Spring Savings: Use code FALL for 5% OFF Total Purchase
Free Shipping Orders Over $100
Questions? Speak with a specialist!
Chat with us!
Click Widget Below
Give us a call!
Email us!
This item requires 3-5 Business Days to process and prepare for shipping.
Description
- LCD Display
- Five TENS modes: B (Burst), N (normal), M (modulation rate and width), S1, S2 (modulation width)
- Timer adjustable, from 5 to 60 minutes and continuous (C), 5 minutes each step
- Patient compliance meter: Shows treatment times in hours
- Optional: 9V AC Adapter and 9V rechargeable battery kit available
- Wave form - asymmetrical bi-phasic square pulse
- Function modes- B: Burst rate adjustable 0.5-5Hz; pulse width adjustable, 50-300 μs, frequency fixed 100Hz, N: Normal mode pulse rate and width adjustable with continuous stimulation
- M: Modulation mode pulse rate and width are automatically varied in a cycle pattern within 50% of its original setting
- S1: Pulse width automatically varied in cyclic pattern over 10 seconds, then decreases over period of 4 seconds to 40% of its original setting
- S2: Pulse width automatically varied in cyclic pattern over 10 seconds, then decreases over period of 4 seconds to 70% of its original setting
- Patient- unit store 60 sets of operation records
- Compliance timer - unit stores 60 sets of operation records for a total time of 999 hours
- Maximum charge- 21 micro coulombs per pulse
- Power source- 9 volt alkaline battery or similar rechargeable cell
- Battery life - 70 hours average usage (alkaline)
Stock # : 852242
Manufacturer # : PM-360
Manufacturer : ProMed Specialties
Application : Tens Unit Electrotherapy Device
Channels : 2-Channel
Contents : Stimulator, Lead Wires, 4 Self-Adhesive Reusable Electrodes, 9 Volt Battery, Low Battery Indicator, Instruction Booklet, Hard Plastic Carrying case
Dimensions : 25 X 61.5 X 108 mm
Modes : Five Tens Modes
Pulse Amplitude : Adjustable 0 to 80 mA Peak into 500 ohm Load Each Channel, Constant Current
Pulse Rate : 1 Hz-160 Hz Adjustable, 1 Hz/Step (1-20 Hz), 5 Hz/Step (20-160 Hz)
Pulse Width : 50 to 260 μs Adjustable, 10 μs/Steps
Type : Digital
UNSPSC Code : 42141807
Voltage : 9 V Battery
Waveforms : Asymmetrical, Biphase, Square Pulse
Weight : 140 Gram
