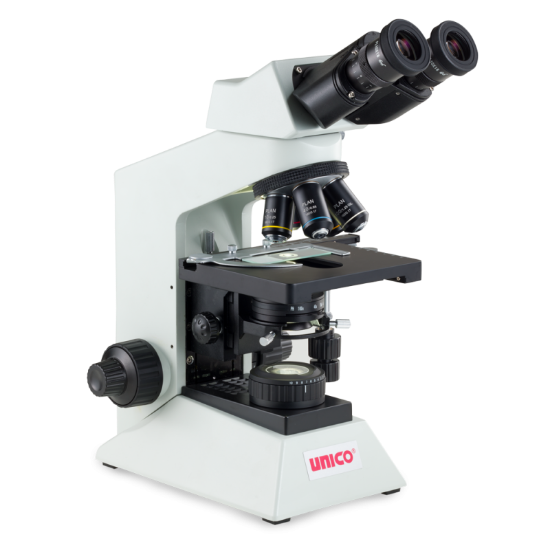

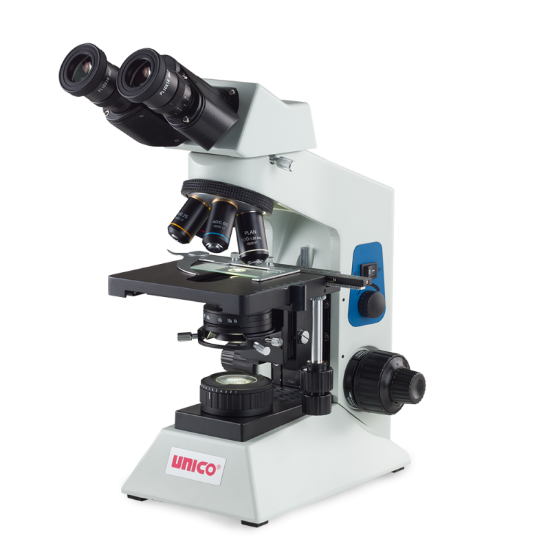

Unico Binocular Advanced Microscope with Seidentpf Binocular Head, Kohler Illumination(Led), Power Input-90V-240V - G504

Unico Binocular Advanced Microscope with Seidentpf Binocular Head

The G500 Series Advanced Microscopes are full-featured, versatile and scalable. Designed for users who applications require them to spend extended time viewing through the microscope. An LED illuminated series with options ranging from standard Brightfield, to Phase Contrast, Polarizing and Epi-Fluorescence.

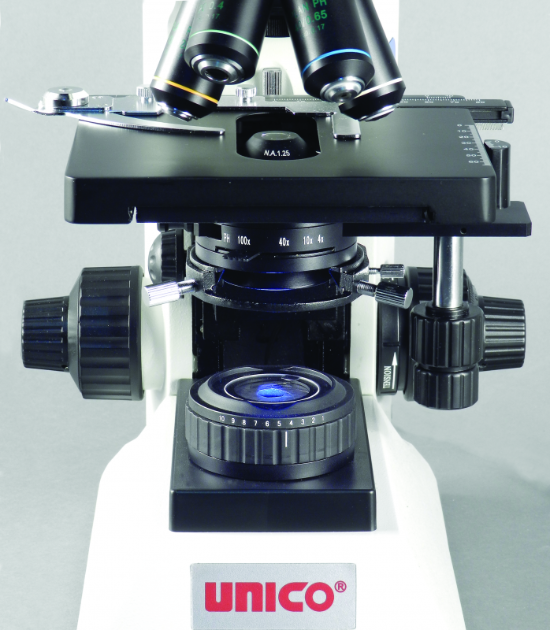

G500’s features a unique combination system of Graduated Iris Diaphragm mounted in the Condenser, paired with a Graduated Koehler Field Iris built into the Illuminator housing. These features allow maximum illumination control, perfect for viewing unstained specimens. The graduations also allow a multi-user practice to set both Irises at the optimal setting based on the specimen type being viewed insuring consistent viewing parameters.

Features:

Seidentopf binocular head
Wf10x paired eyepieces

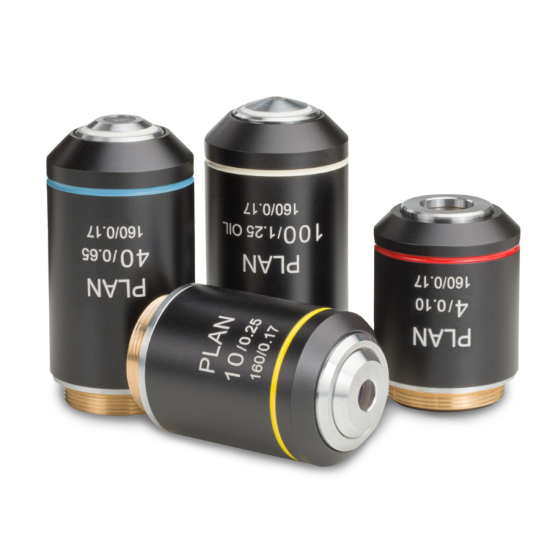

4x,10x,40xr,100xr din plan achromat objectives
Built-in mechanical stage with abbe na1.25 condenser &iris
Kohler led illumination

Specifications:

Head: Binocular
Eyepiece: 10X WF(2)Hi-EP
Objectives: 4,10,40,100X Plan
Condenser: NA 1.25
Diaphragm: Iris
Stage: Mechanical
Illumination: 3 Watt LED
Focusing: Coaxial

Size and Weight:

Actual Size: 16”H x 6“Wx 12”D
Shipping Dimension: 21”L x 19”W x 10“H
Net Weight: 14.5 lbs
Shipping Weight: 19 lbs
