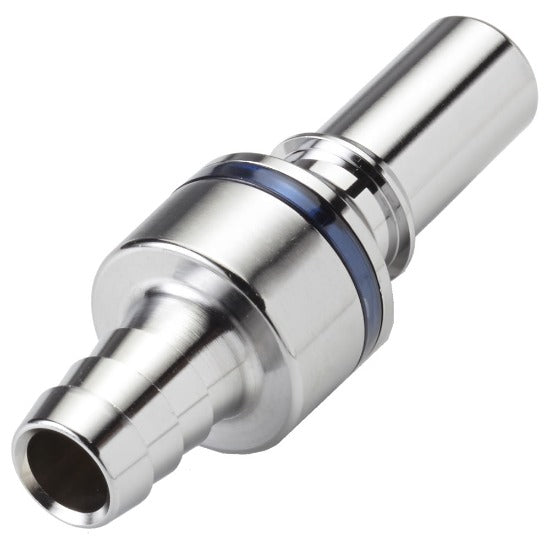

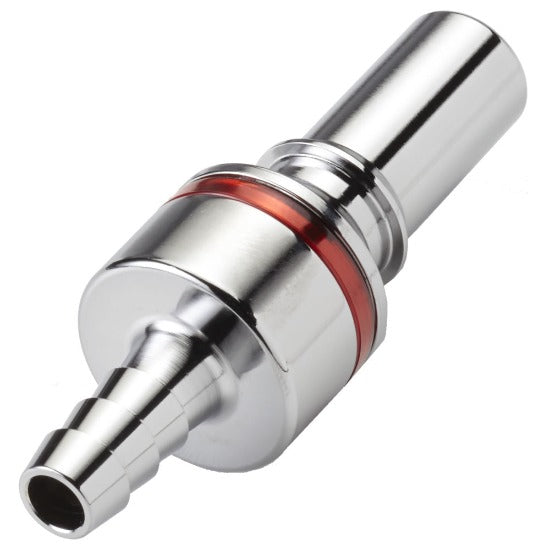

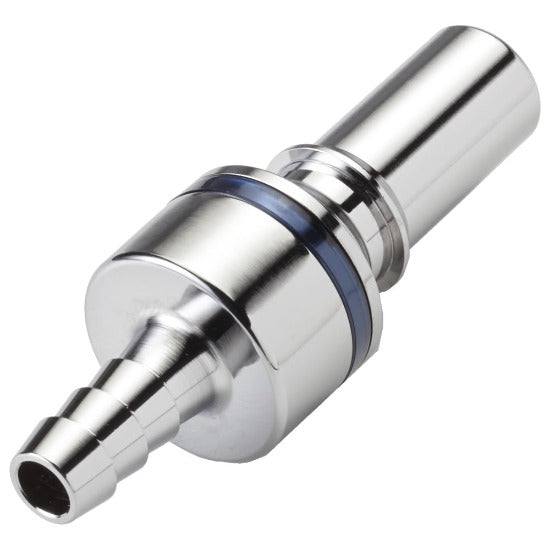

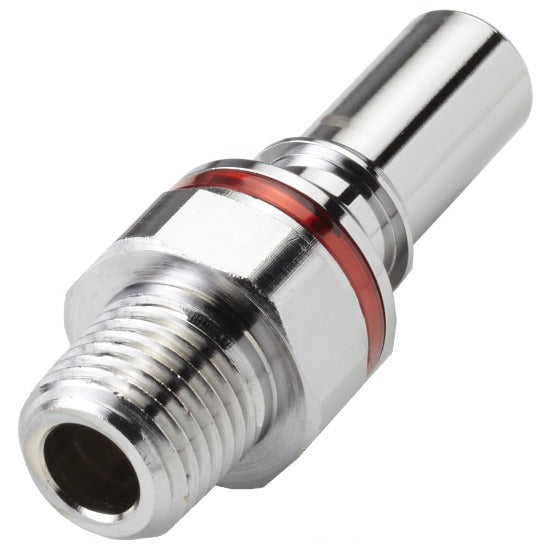

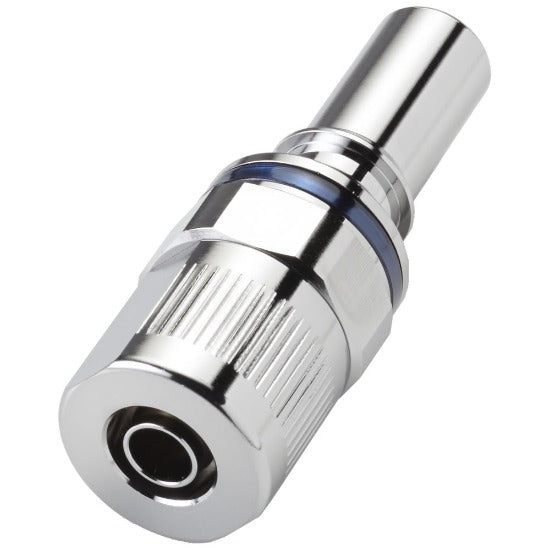

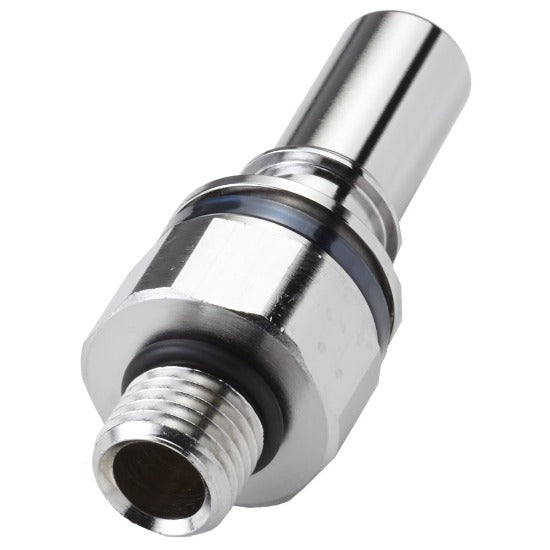

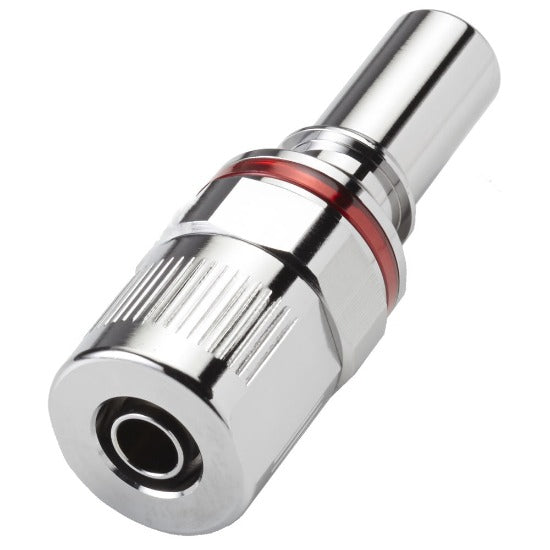

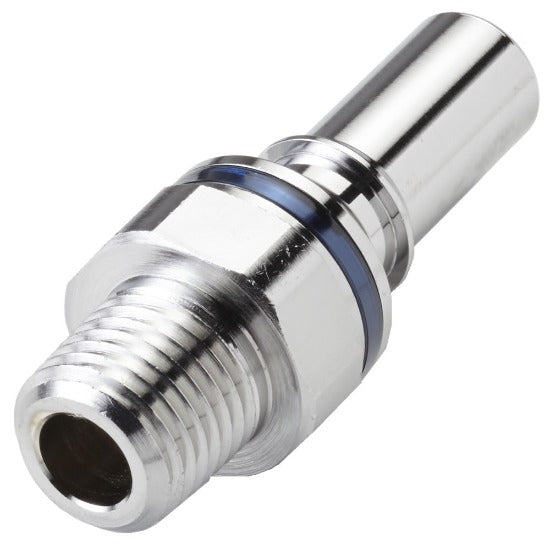

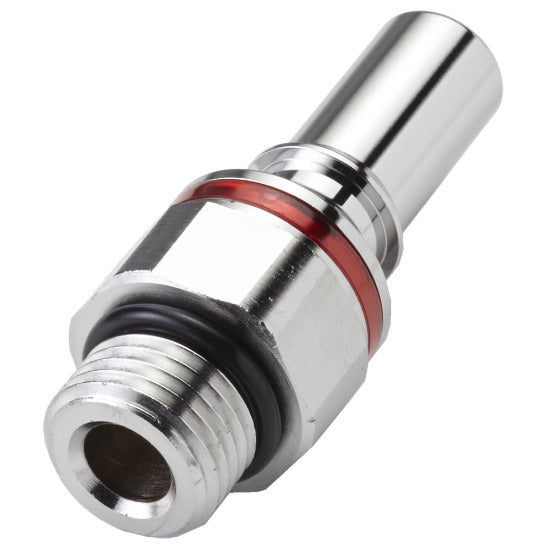

US Plastic Corp. LQ4 Series Chrome Plated Brass Valved Insert for Liquid Cooling
The LQ4 Series quick disconnect couplings provide ultra-reliable, dripless connections and disconnections that protect valuable electronics. They are designed specifically for liquid cooling applications, and the LQ4 fittings utilize valve technology that eliminates drips and can withstand long-term use. The non-spill design even allows disconnection under pressure. Redundant sealing adds extra protection from leaks. Red and blue color coding provide visual differences in cooling lines. There is no seal friction in the connected state, which allows ultra-reliable protection from drips when disconnecting, even after long periods of being connected. The ruggedness of these couplings makes them able to withstand long-term use. These couplings allow the tubing to move, which eliminates tube kinking.
Features:
Chrome-plated brass main housing
Polysulfone valve and thumb latch
SS valve spring and external spring
EPDM seals
Lubricated with Krytox PFPE
Spillage per disconnect: 0.025 cc at 0 psi, 0.055 cc at 120 psi
Inclusion: 0.025 cc per connect
Maximum flow at disconnect: 3 gallons/minute
Pressure rating: vacuum to 120 psi, 8.3 bar
Temperature range: 0°F to 240°F
Body Sold Separately
