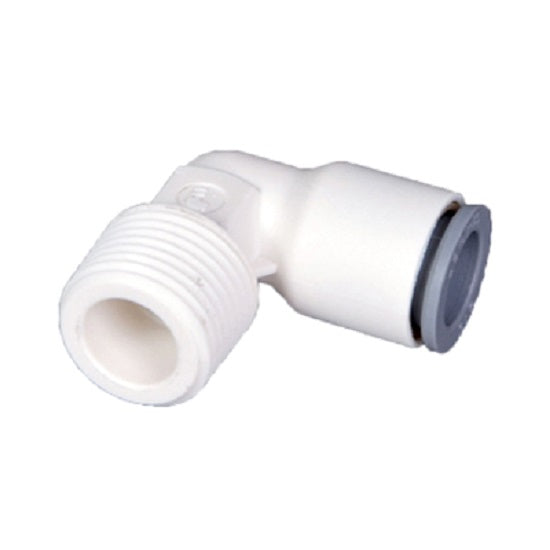

US Plastic Corp. Parker Hannifin NPTF Liquifit Fixed Elbow
Liquifit fittings offer an innovative alternative for water applications. No fluid contamination occurs, and environmental protection is guaranteed. Typical applications for these fittings include water purification systems, water dispensers, drink dispensers, cooling systems, food processing, and CO2. Connect - Push the tubing until it bottoms out. Holding and sealing are accomplished instantaneously. Disconnect - First, depress the manual release button, then pull the tubing out of the fitting.
Features:
White nylon 11
D-shaped EPDM seals
SS gripping ring eliminates locking clips
1/5th the CO2 emissions of an acetal fitting
Superior mechanical strength & chemical resistance
Compact design facilitates the tightest tube bends
Work. pressure @ 73°F: 230 psi (1/4") & 190 psi (3/8")
Temperature range: 35°F to 200°F
Meets FDA & NSF 51& 61 standards
Material: Nylon
Configuration: Push-Connect x Male NPTF
