US Plastic Corp. Phenolic Grade XX Sheet

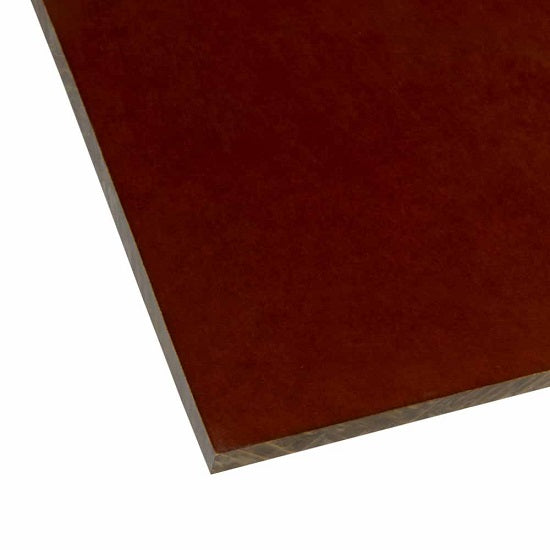

Phenolic is a hard, dense material made by applying heat and pressure to layers of paper or fabric, impregnated with a synthetic resin. These phenolics are approximately half the weight of aluminum, and their physical toughness resists abrasion, friction, impact, and material fatigue. Special properties fight off the corrosive action of water and many chemicals, increasing the service life and efficiency of your product parts. The insulating qualities of each grade, such as low dissipation factor and excellent dielectric strength, make them valuable for many precise electrical and electronic applications.
Features:
Copper color
Hard, strong paper-based laminate
Good mechanical properties
High tensile, compressive, flexural & impact strength
Machines quickly & easily
High dielectric strength & resistance to moisture
Impact strength (ASTM D732): 0.055 ft. lb/in. of notch; High strength-to-weight ratio
Moisture absorption rate: 1.3%
Maximum temperature: 266°F
Cut tolerance ±1/4"
