US Plastic Corp. SMC 027 Series Brass Two-way Ball Valve - 1/4"
In Stock
$25.99
SKU 2530490
Spring Savings: Use code FALL for 5% OFF Total Purchase
Free Shipping Orders Over $100
Questions? Speak with a specialist!
Chat with us!
Click Widget Below
Give us a call!
Email us!

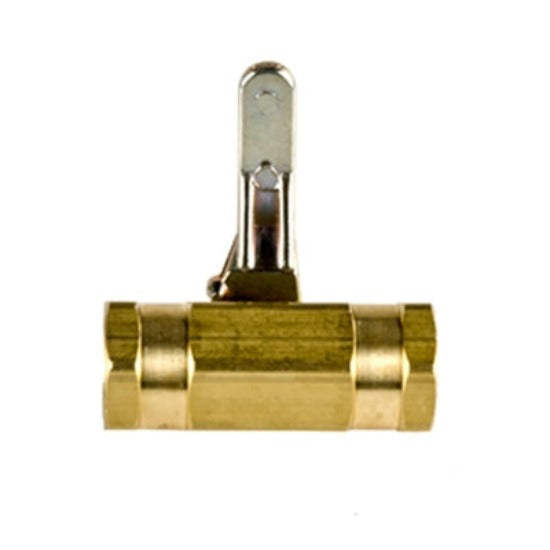

US Plastic Corp. SMC 027 Series Brass Two-way Ball Valve
The 027 Series Two-Way Ball Valve compact design promotes multiple configurations to fit specific end-use applications.
Features:
Brass body and ends
Zinc diecast lever handle
Electroless nickel plated brass ball
PTFE seats
Viton, Buna-N, or EPDM seals
0.218" diameter through-hole in the ball
Support flow & pressure in either direction
Maximum pressure: 500 psi
Maximum temperature: 180°F

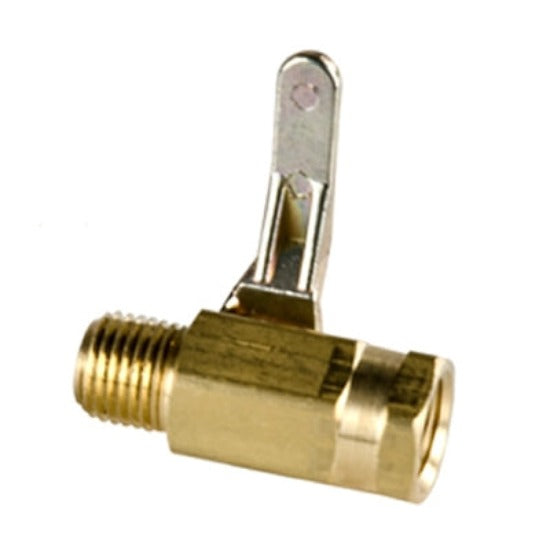

1/4" FNPT X 1/4" FNPT to 1/4" FNPT X 1/4" MNPT have a one-piece body construction

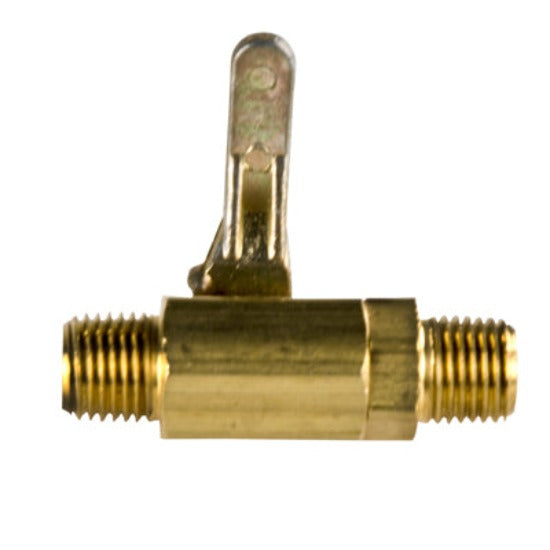

1/4" MNPT X 1/4" MNPT have a two-piece body construction to cover 1/4" NPT end configuration applications.
