US Plastic Corp. SMC 615 Series Brass Check Valve - 3/8" FNPT x 3/8" FNPT
In Stock
$35.99
SKU 6520090
Spring Savings: Use code FALL for 5% OFF Total Purchase
Free Shipping Orders Over $100
Questions? Speak with a specialist!
Chat with us!
Click Widget Below
Give us a call!
Email us!

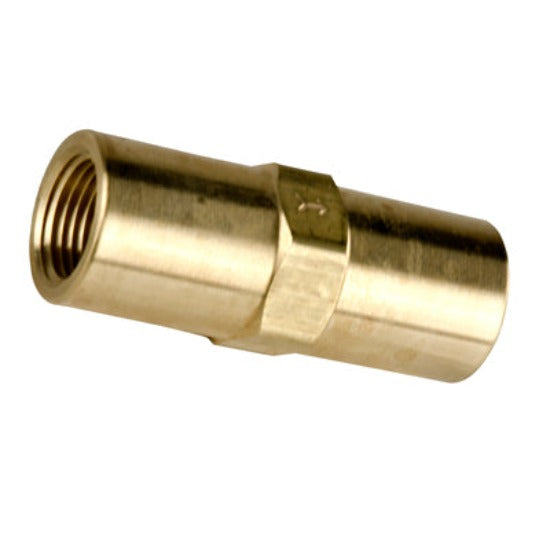

US Plastic Corp. SMC 615 Series Brass Check Valve
The 615 Check Valve incorporates a piston with an embedded O-ring that seals on the seat. Pressure in the flow direction moves the piston and seal off the seat and exposes the cross holes in the piston. The flow arrow on the body will point from inlet to outlet.
Features:
Brass body & piston
Viton, Buna-N, or EPDM seals
Beryllium copper retainer
Good for a wide range of air & fluid applications
0.375" diameter through-hole in the ball
Positive seal at low back pressure or slight vacuum
Cracking pressure: 1/3 psi or 1 psi
Maximum pressure: 500 psi
Maximum temperature: 250°F (Buna-N), 300°F (EPDM) & 375°F (Viton)
Maximum pressure: 500 psi
