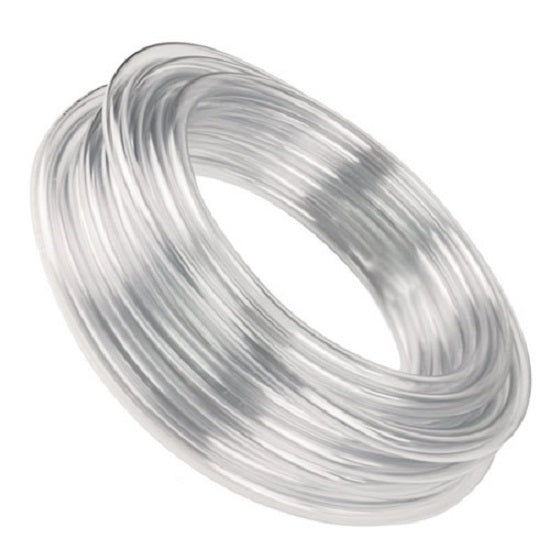

US Plastic Corp. Tygon ND 100-80 Microbore Tubing

US Plastic Corp. Tygon ND 100-80 Microbore Tubing

Tygon ND 100-80, one of the medical industry's first non-DEHP tubing offerings, has been specially formulated in a higher durometer that makes it possible to produce smaller diameter tubing with high resistance to kinking and collapse. Tygon ND 100-80 is available in five tiny sizes for use in catheters, intravenous or intra-arterial infusion, and other surgical and hospital applications. It is rigid enough for secure handling, yet soft enough to reduce problems with puncturing. Since Tygon ND 100-80 is thermoplastic, it can be fabricated into cannulas or protective sheath products using thermoforming and flaring techniques. During the extrusion process, individual product dimensions are maintained and monitored through in-line micrometers and off-line verification with computerized imaging equipment.

Features:

Biocompatible, non-DEHP, polymer material
Developed specifically for medical device needs
Lots tested to ensure DEHP levels <1000 ppm
High resistance to kinking & collapse
Withstands EtO, gas & gamma sterilization
Durometer hardness (shore A): 80
Temperature range: -31°F to 185°F
Meets USP Class VI criteria
Priced per roll, sold in 500' intervals - 500' max. length
