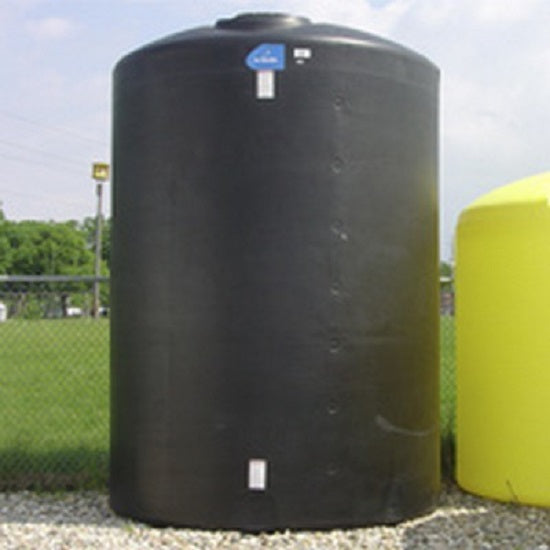

US Plastic Corp. Vertical Closed Head Tank, Black

US Plastic Corp. Vertical Closed Head Tank

These tanks are free standing with a flat bottom for indoor or outdoor installations. Note: The largest fitting that can be installed on tanks with a 23" - 32" diameter is a 2" fitting. Tanks with a 35" diameter or larger can have a 3" fitting installed for an extra charge. Please specify clearly if you require this 3" fitting. Additional installation fees may be incurred for any additional fittings other than the standard. 20, 25 and 40 gallon tanks have a 3/4" fitting installed, 55, 130 and 135 have 1", other tanks under 5000 gallons have a 2" fitting, 5000 gallons and larger have a 3" fitting. These tanks are free standing with a flat bottom for indoor or outdoor installations. The specific gravity for 20 - 625 gallons is 2.0, 800 - 9150 & 12,500 gallons is 1.7, 10,500 (8530) gallons is 1.6 and 10,500 (11729) is 1.8.

Features:

10 - 3000 gallon tanks are MDPE with UV inhibitors
3100 - 4000 gallon tanks are HDPE with UV inhibitors
Polypropylene tank fittings with Santoprene gaskets
Tanks 300 gallons or greater have a siphon tube at the bottom for more complete drainage
Max. temperature: 120°F constant & spikes up to 140°F
Meets FDA & NSF & ANSI 61 standards
Tanks are special order & have a 3-4 week leadtime
